Product Position:

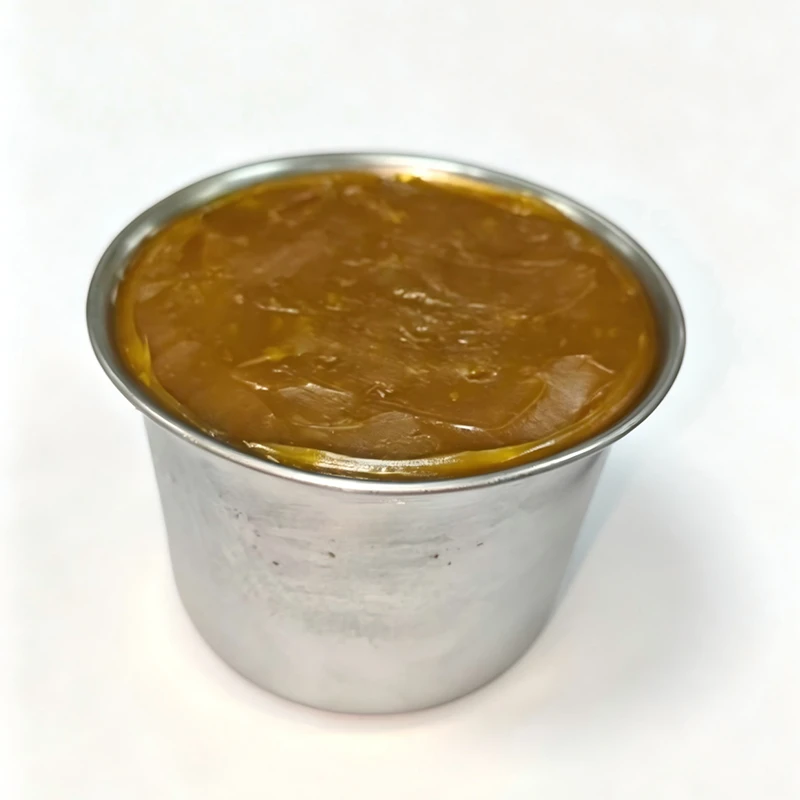

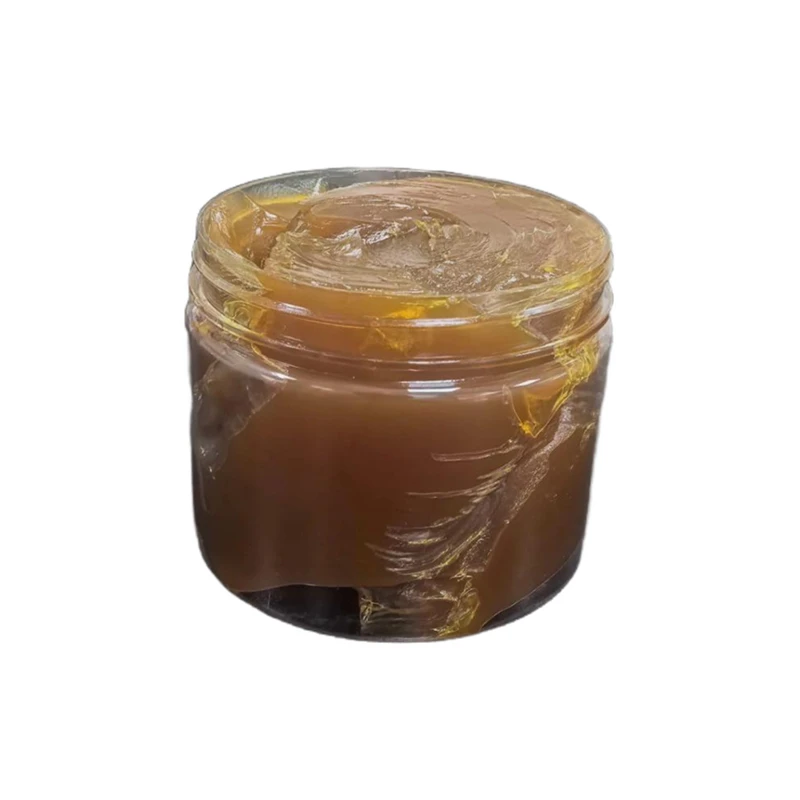

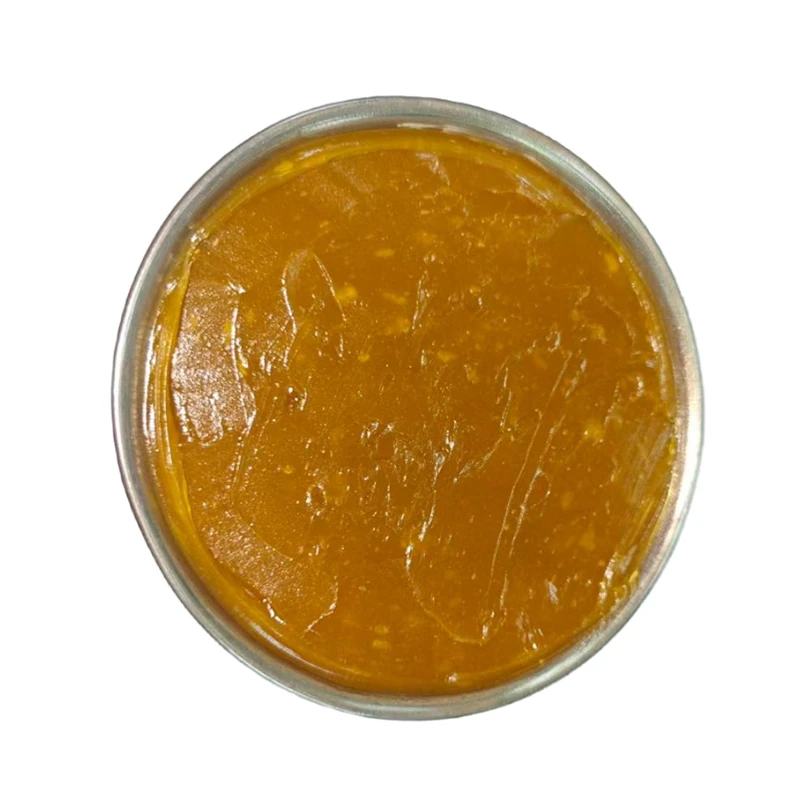

HDC-EP series uses refined mineral base oil thickened with complex lithium soap, containing lead-free EP additives, anti-wear agents, antioxidants and anti-rust agents. Available in EP0, EP1 and EP2 consistency grades for different lubrication points and supply methods.
HDC-EP series uses refined mineral base oil thickened with complex lithium soap, containing lead-free EP additives, anti-wear agents, antioxidants and anti-rust agents. Available in EP0, EP1 and EP2 consistency grades for different lubrication points and supply methods.
|
Grade |
NLGI |
Application |
Supply Method |
|
HDC-EP0 |
0 |
Centralized gearbox lubrication |
Pump |
|
HDC-EP1 |
1 |
Reducer, large bearings |
Pump/grease cup |
|
HDC-EP2 |
2 |
Medium/small bearings, pins |
Manual/grease gun |
|
Model |
Packaging |
Shelf Life |
Notes |
|
EP2 / EP1 |
250 kg Iron Drum |
12 months |
|
|
Test Item |
EP0 |
EP1 |
EP2 |
Test Method |
|
Cone Penetration |
355 – 385 |
310 – 340 |
265 – 295 |
GB/T 269 |
|
Drop Point |
≥ 170°C |
≥ 170°C |
≥ 175°C |
GB/T 3498 |
|
Flash Point |
≥ 200°C |
≥ 200°C |
≥ 230°C |
GB/T 3536 |
|
Water Wash-off |
≤ 10% |
≤ 8% |
≤ 5% |
SH/T 0109 |
|
Timken OK Load |
≥ 20 kg |
≥ 20 kg |
≥ 20 kg |
SH/T 0203 |
|
Four-ball PB |
≥ 882 N |
≥ 882 N |
≥ 981 N |
GB/T 3142 |
|
Copper Corrosion |
≤ 1a |
≤ 1a |
≤ 1a |
GB/T 7326 |
|
Oil Bleeding |
— |
≤ 8% |
≤ 5% |
SH/T 0324 |
|
Extended Cone Pen. |
≤ 30 |
≤ 30 |
≤ 25 |
GB/T 269 |
• EP and anti-wear
OK Load ≥20 kg, PB ≥882 N
• Good mechanical stability
Cone penetration change ≤30 after 100k strokes
• Water resistance
EP2 wash-off ≤5% at 38°C
• Anti-rust & anti-corrosion
Copper corrosion ≤1a
• Import substitution
Alternative to Mobil XHP, Shell Gadus S2 Tbm2
• Cost-effective
40–60% of imported brand price, 7–15 day delivery
