Product Position:

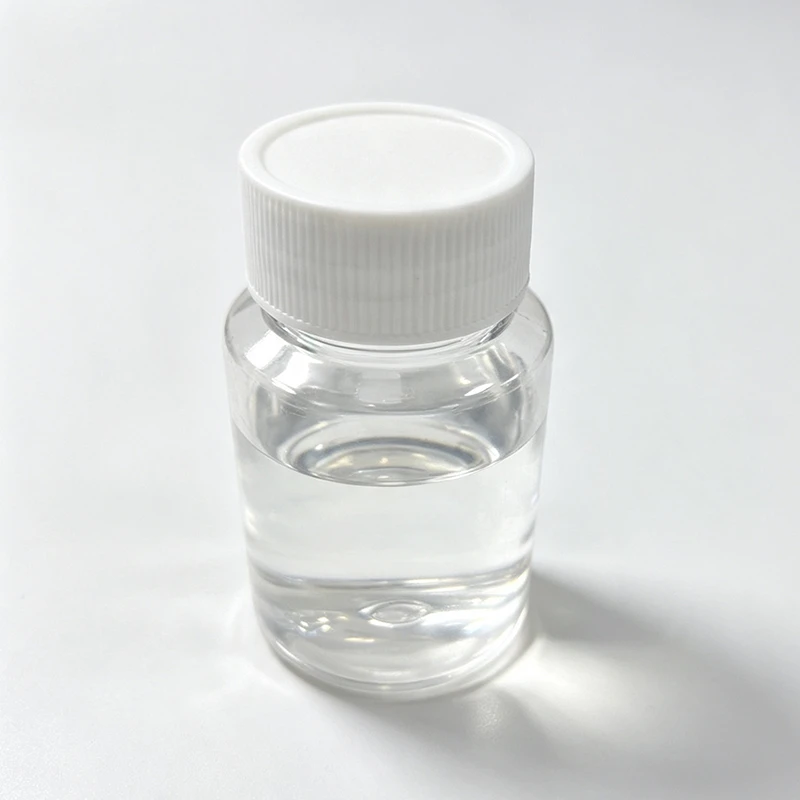

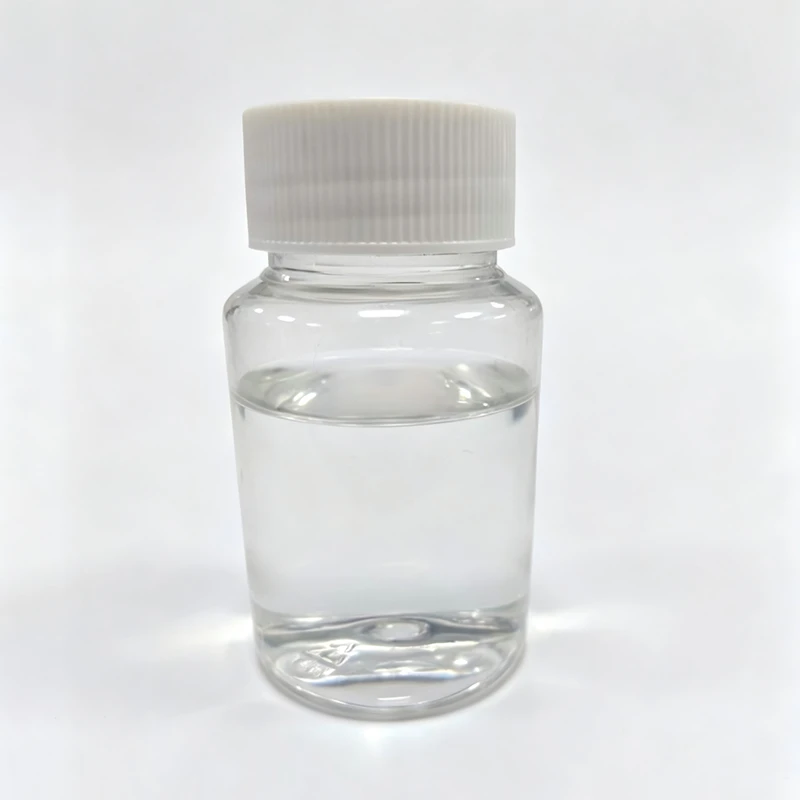

Shield dispersant is a chemical additive that prevents clay clogging (mud cake formation) on the cutterhead and in the excavation chamber during tunnelling in cohesive ground. In clay, silt or mudstone, clay particles tend to consolidate under heat and pressure, causing torque spikes, TBM stalling or jamming. The dispersant modifies clay particle surface charge and hydrophilicity, preventing particle agglomeration and adhesion.
Shield dispersant is a chemical additive that prevents clay clogging (mud cake formation) on the cutterhead and in the excavation chamber during tunnelling in cohesive ground. In clay, silt or mudstone, clay particles tend to consolidate under heat and pressure, causing torque spikes, TBM stalling or jamming. The dispersant modifies clay particle surface charge and hydrophilicity, preventing particle agglomeration and adhesion.
HDC FSJ series is compounded with anionic surfactants, powerful penetrating agents and stabilizers. It penetrates rapidly into clay aggregates, disperses and breaks down existing mud cake, while preventing new cake formation. Non-corrosive to equipment and environmentally safe.
|
Model |
Packaging |
Shelf Life |
Notes |
|
HDC-FSJ |
200 kg Iron Drum |
12 months |
|
|
1000 kg IBC |
|
Test Item |
Specification |
Test Method |
|
Appearance |
Light yellow to brown liquid |
Visual |
|
Density (20°C) |
1.05 – 1.15 g/cm³ |
GB/T 1884 |
|
pH Value |
8.0 – 11.0 |
GB/T 6368 |
|
Viscosity (20°C) |
≤ 50 mPa·s |
GB/T 10247 |
|
Surface Tension |
≤ 35 mN/m |
GB/T 22237 |
|
Penetration Power |
≤ 5 s |
GB/T 11276 |
|
Cake Dispersion Rate |
≥ 80% |
T/CCMA 0092 |
|
Corrosion |
≤ 0.05 mm/a |
GB/T 18175 |
|
Recommended Dosage |
2% – 8% (vol. ratio) |
— |
• Rapid penetration
Penetrates clay aggregates within 5 seconds
• High cake dispersion
≥80% cake dispersion within 30 min
• Non-corrosive
Carbon steel corrosion ≤0.05 mm/a
• Synergy with foam
Can mix with SF series for simultaneous torque reduction and anti-clogging
• Wide mineral range
Effective on montmorillonite, kaolinite and illite clays
• Eco-friendly
Biodegradable ≥70%, no groundwater contamination
The dispersant can be applied via: 1) Mixed with foam agent through the foam injection system to the cutterhead face; 2) Injected directly into the excavation chamber through ports; 3) Injected via manlock for soaking during shutdown to break existing mud cake.
|
Application |
Concentration |
Dosage |
Scenario |
|
Mixed with foam |
2% – 3% |
With foam system |
Prevention during advance |
|
Direct chamber injection |
5% – 8% |
50–200 L per batch |
Light cake treatment |
|
Soak during shutdown |
8% – 10% |
Fill chamber |
Heavy cake break down |
